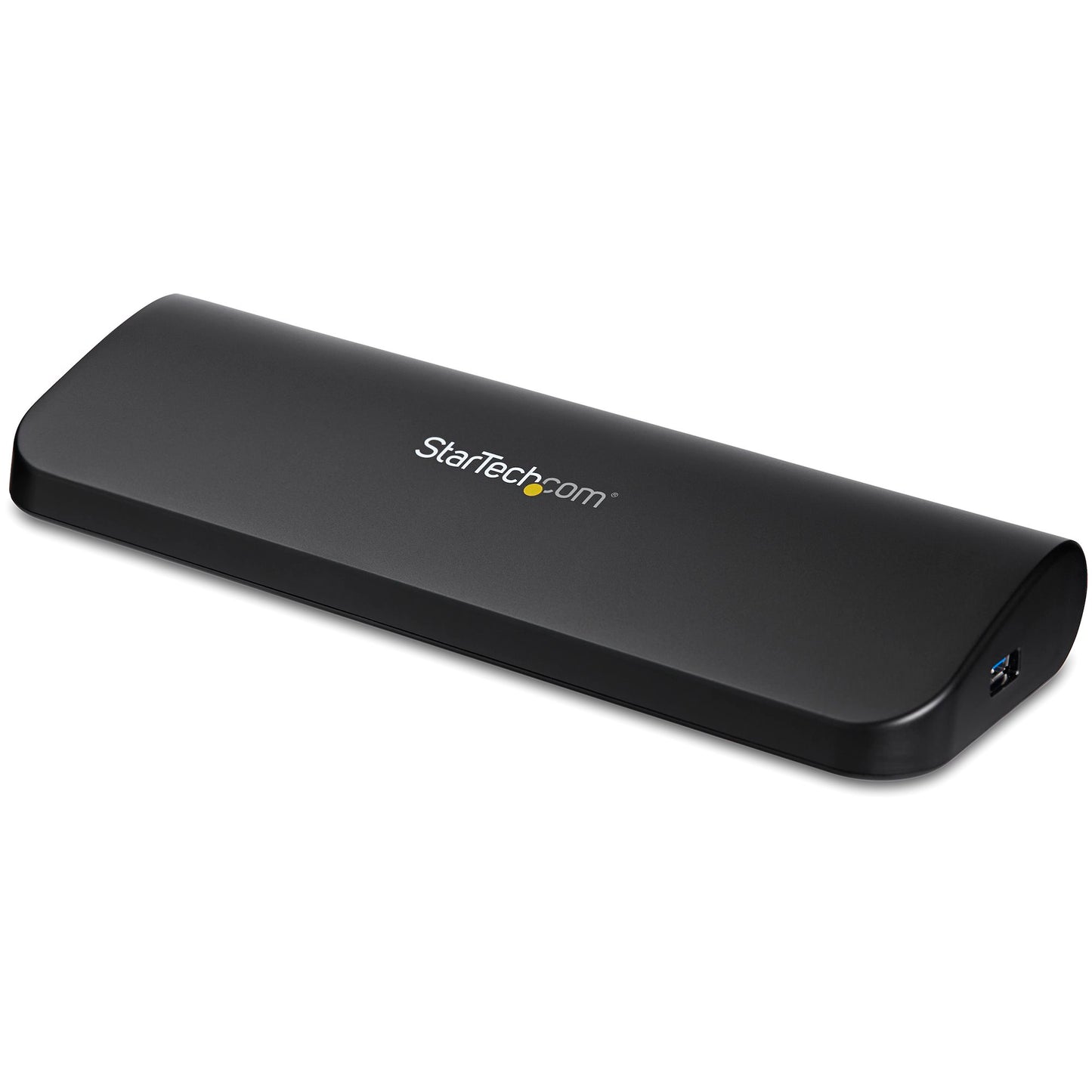

Startech Dual-Monitor USB 3.0 Docking Station with HDMI & DVI/VGA
Startech Dual-Monitor USB 3.0 Docking Station with HDMI & DVI/VGA
Couldn't load pickup availability

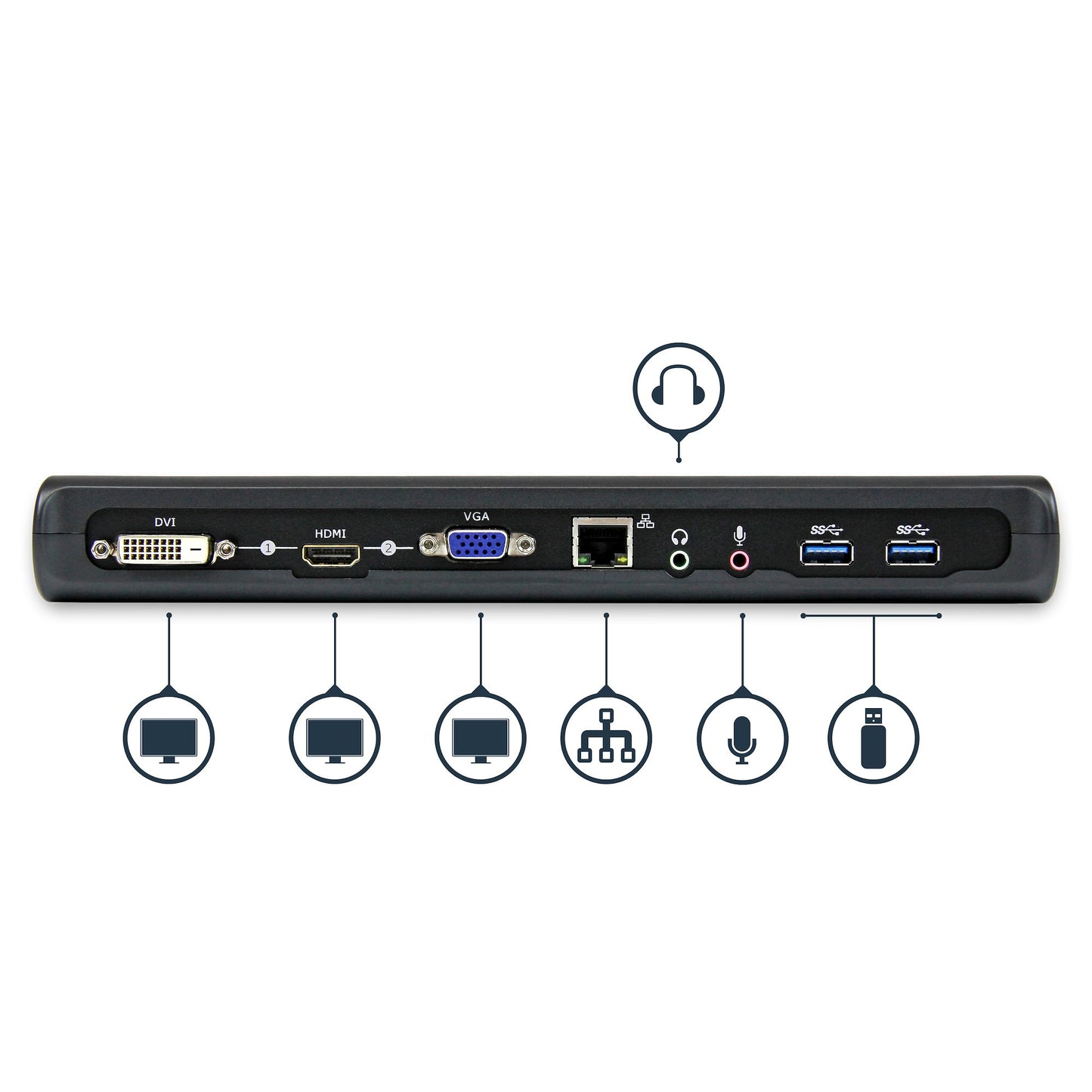

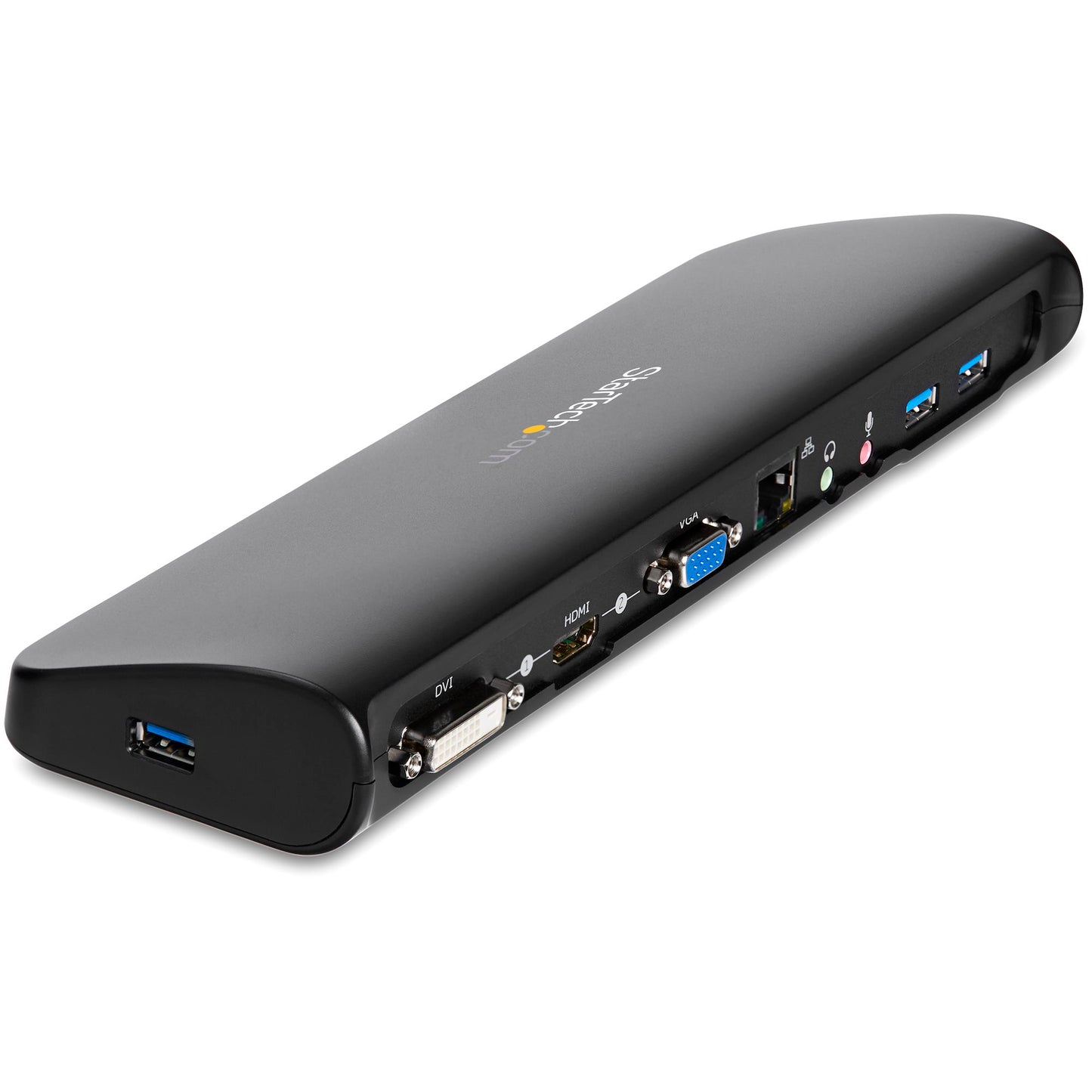

This USB 3.0 dock combines three USB 3.0 ports, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port, into a single docking station for maximum productivity.
Display Adaptability
Offering flexible dual video combinations right out-of-the-box, this universal laptop docking station features HDMI, DVI and VGA external monitor outputs. Each video output supports HD video resolutions (2048x1152 max) and HD video playback for an ideal solution to expanding your notebook's video capability.
Available display combinations:
- HDMI + VGA
- HDMI + DVI
Integrated USB Hub

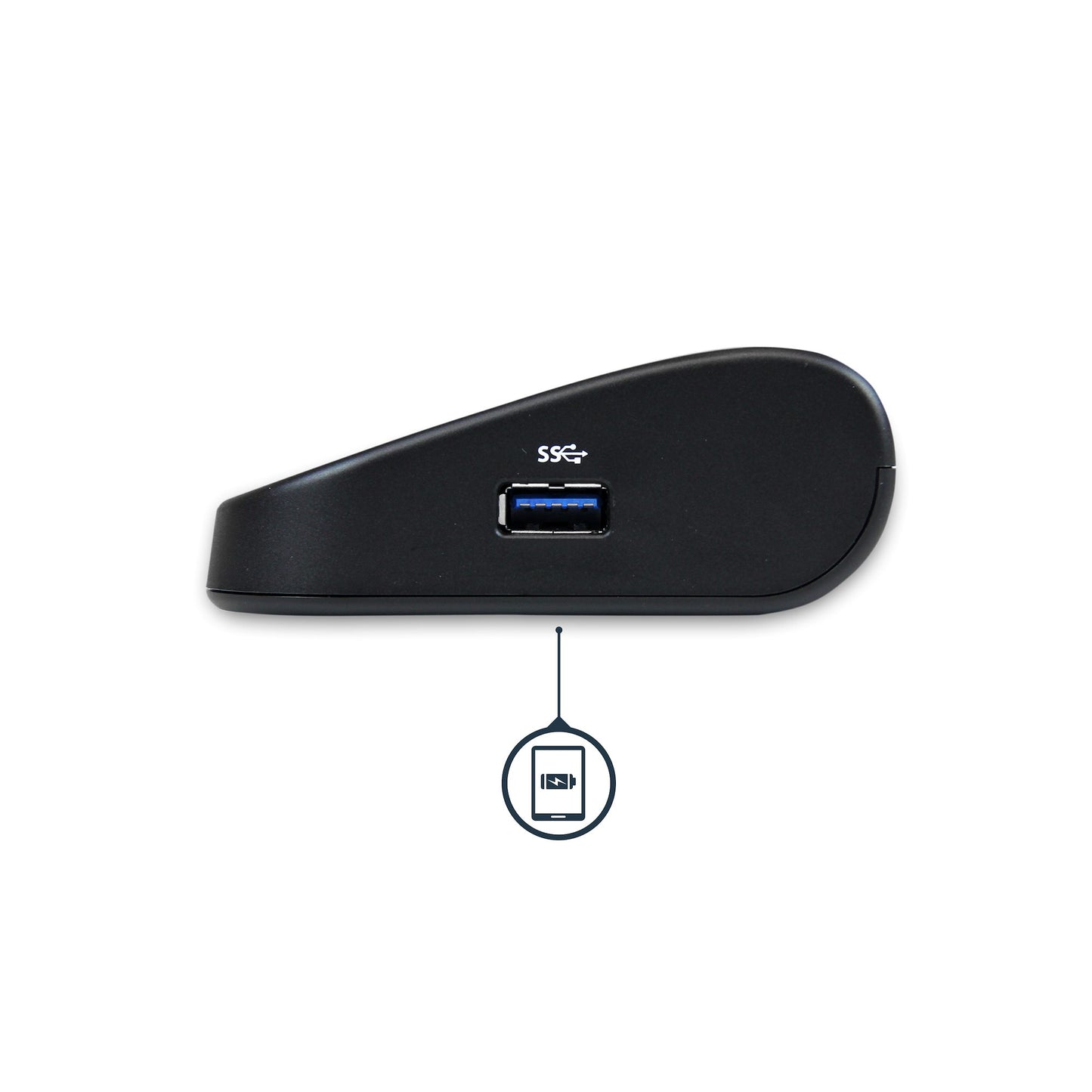

The built-in USB hub features three USB 3.0 ports for connecting extra peripherals such as external hard drives or a wired mouse, as if they are connected directly to your laptop.
Direct Ethernet Connectivity
The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving you an instant connection to a wired network.
StarTech.com laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 Docking Station is backed by a competitive 3-year warranty and free lifetime Technical Support.
Applications
- Convert laptop to desktop workstation
- Hot/Remote desks
The StarTech.com Advantage
- Increase available screen space with dual independent HD video outputs
- Expand connectivity with additional USB 3.0 ports
Compatibility
Specifications
| Warranty Information | Warranty | 3 Years |
|---|---|---|
| Connector(s) | 2 - Connector Type(s) | 3.5 mm Mini-Jack (3 Position) |
| 1 - Connector Type(s) | DVI-D (25 pin) | |
| RJ-45 | ||
| VGA (15 pin, High Density D-Sub) | ||
| HDMI (19 pin) | ||
| USB Type-B (9 pin) USB 3.0 | ||
| 3 - Connector Type(s) | USB Type-A (9 pin) USB 3.0 (5 Gbps) | |
| Environmental | Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -10°C to 60°C (14°F to 140°F) | |
| Humidity | 0~90% RH | |
| Hardware | 4K Support | No |
| Fast-Charge Port(s) | No | |
| Displays Supported | 2 | |
| Bus Type | USB 3.0 | |
| Industry Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, USB 3.0 | |
| Chipset ID | DisplayLink - DL-3900 Genesys Logic - GL3520 Realtek - RTL8211E |
|
| Packaging Information | Package Height | 2.6 in [66 mm] |
| Package Length | 11.7 in [29.6 cm] | |
| Shipping (Package) Weight | 31.0 oz [878 g] | |
| Package Width | 7.7 in [19.5 cm] | |
| Performance | Maximum Data Transfer Rate | 5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex) |
| Maximum Analog Resolutions | 2048x1152 (VGA) | |
| Maximum Digital Resolutions | 1920x1200 (DVI-D) 1920x1080 (HDMI) Lower resolutions are also supported. |
|
| Audio Specifications | The HDMI port supports audio output | |
| Type and Rate | USB 3.0 - 5 Gbit/s | |
| Compatible Networks | 10/100/1000 Mbps | |
| Auto MDIX | Yes | |
| Full Duplex Support | Yes | |
| Physical Characteristics | Weight of Product | 10.4 oz [295 g] |
| Color | Black | |
| Material | Plastic | |
| Cable Length | 35.4 in [90 cm] | |
| Product Length | 12.0 in [30.4 cm] | |
| Product Width | 7.0 in [17.8 cm] | |
| Product Height | 1.7 in [44 mm] | |
| Power | Power Source | AC Adapter Included |
| Input Voltage | 100 - 240 AC | |
| Input Current | 0.9 A | |
| Output Voltage | 5 DC | |
| Output Current | 4 A | |
| Center Tip Polarity | Positive | |
| Plug Type | B | |
| Power Consumption (In Watts) | 20 | |
| Software | OS Compatibility | Windows® XP SP3 (32-bit), Vista, 7, 8, 8.1, 10 macOS 10.6 - 10.12, 10.14 - 10.15, 11.0 Chrome v69+ |
| Special Notes / Requirements | System and Cable Requirements | USB 3.0 enabled computer system with available USB 3.0 port |
| Available AC electrical outlet | ||
| HDMI (and either DVI-D or VGA if dual display is desired) enabled display device(s) e.g. monitor, projector, HTDV, etc. with cables | ||

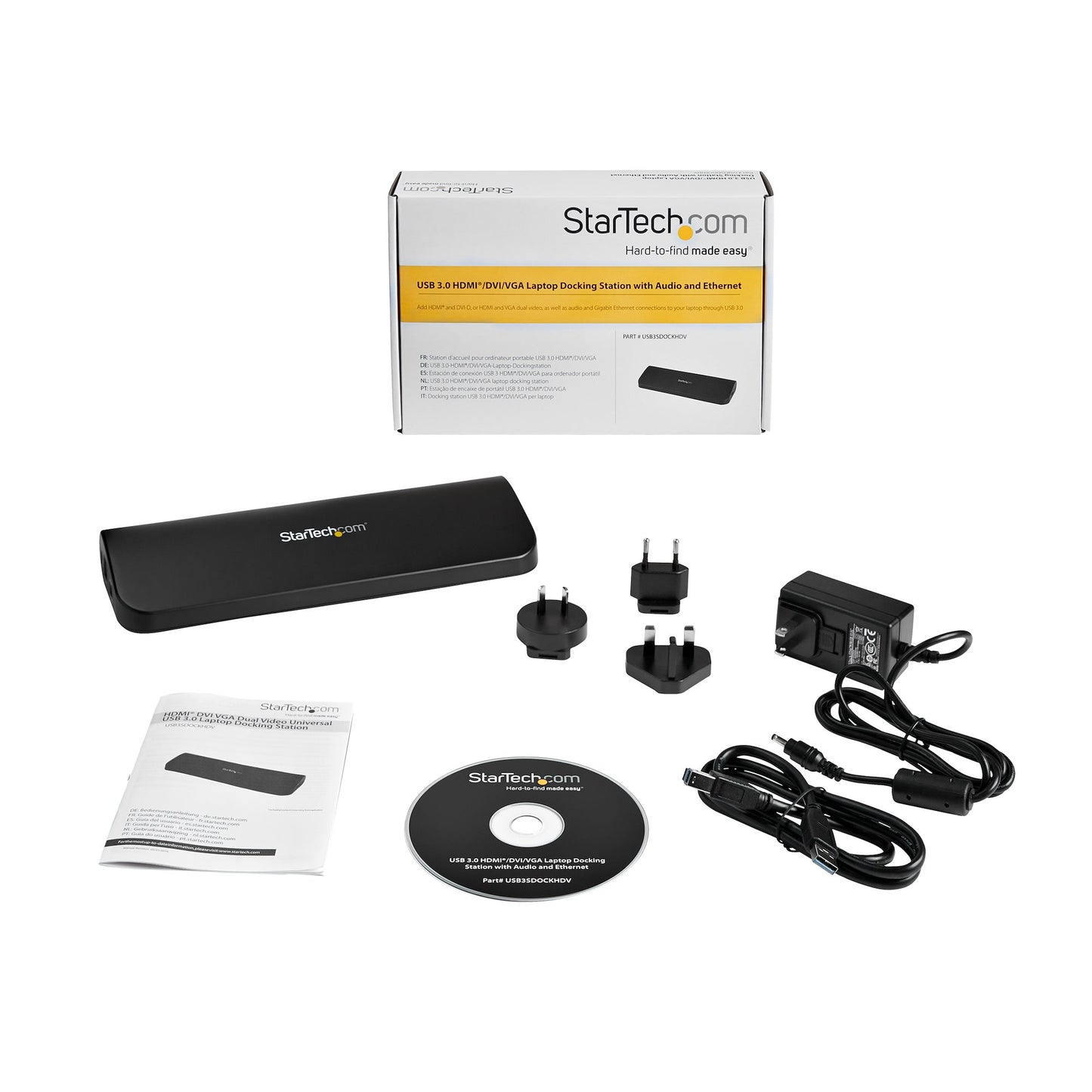

| What's in the Box | 1 - Included in Package | Docking Station |
| 0.9m USB 3.0 Cable | ||
| Universal Power Adapter (NA/EU/UK/AU) | ||
| Installation CD | ||
| Instruction Manual |
